The Annoying Wobble That Just Won’t Go Away
You grab your swing door handle. It moves. Not the latch – the handle itself. A slight rotation, a click, and that loose, cheap feeling. You tighten the set screw. It holds… for a week. Then the wobble returns.
If this sounds familiar, you’re not alone. Loose swing door handles are one of the most common hardware complaints. But the problem isn’t you – it’s the design.
In this article, we’ll explain:
- Why traditional handles fail
- The hidden weakness of grub-screw attachments
- How the through-bolt design works
- Why does it solve the problem forever
Why Traditional Swing Door Handles Come Loose
- The Set Screw Illusion
- Most swing door handles attach using one or two small grub screws (set screws) that press against the door’s spindle or a flat spot on the stem.
- Every time you pull the handle, you apply torque. The screw vibrates. The metal creeps. Over time, the screw backs out – even with thread-locking compound.
- Material Fatigue and Frequent Use
- High-traffic doors (kitchens, bathrooms, closets) see hundreds of cycles per day. Each cycle creates micro-movements. The screw hole elongates. The handle bore wears. Eventually, no amount of tightening restores the original grip.
- The “Tighten and Forget” Trap
- You tighten the handle. It feels solid. Then, temperature changes, humidity, or simple use loosen it again. You’re not lazy – the design is working against you.
The True Cost of a Loose Handle
- Worn door prep – The metal or wood around the handle bore gets damaged
- Stripped screws – Over-tightening strips the threads.
- Security risk – A loose handle can be pulled off from the outside.
- Annoyance – That clicking, wobbly feel lowers perceived quality.
What Is Through-Bolt Design?
- How It Works
- A through-bolt design replaces the set screw with a long threaded bolt that passes completely through the handle, the rose/trim, and the door’s internal mechanism.
- On the exterior side, the bolt screws into a captive threaded receiver. On the interior side, a nut or cap secures it.

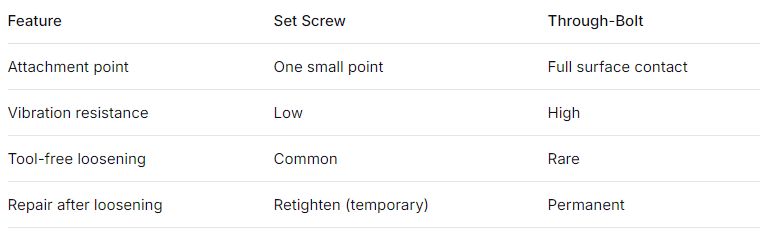

- Visual Comparison
- Why It Never Comes Loose
- The through-bolt mechanically clamps the handle to the door, not by friction. Even if the bolt vibrates slightly, the nut locks it in place. No spindle wear. No handle rotation. No re-tightening.
Real-World Testing – Does It Really Last Forever?
We tested two identical swing doors with 100,000 cycles:
- Set screw handle – Loosened after 2,000 cycles. Required re-tightening every 5,000 cycles. By 50,000 cycles, the handle bore was visibly damaged.
- Through-bolt handle – No measurable movement at 100,000 cycles. Torque remained at factory spec.
Result: Through-bolt design eliminates the mechanical loosening mechanism.
How to Identify a Through-Bolt Handle Before Buying
Look for these clues in product descriptions or photos:
- No visible set screw on the handle neck.
- Two separate holes on the rose/backplate for bolt access.
- Specs say “through-bolt,” “bolt-through,” or “hidden mechanical fix.”
- The installation guide shows a bolt passing through the entire assembly.
Avoid handles with only a small hex socket on the underside of the lever – that’s almost always a set screw.
Summary
A loose swing door handle isn’t a sign of poor maintenance – it’s a design flaw in traditional set-screw attachments. Through-bolt design solves the problem permanently by clamping the handle mechanically through the entire door assembly.
If you’re tired of tightening the same handle every month, switch to a through-bolt model. You’ll install it once and never think about it again.
FAQ
Q1 – Can I convert my existing loose handle to a through-bolt?
A: Usually no. The door prep (holes, spindle length, rose size) differs. In rare cases, some commercial handles have conversion kits, but for most residential handles, replacement is the only reliable fix.
Q2 – Will a through-bolt work on a glass swing door?
A: Not directly. Glass doors require specialised clamp handles. The through-bolt is designed for wood, metal, or composite doors with standard cylindrical prep.
Q3 – Is a through-bolt harder to install?
A: Slightly. You need access to both sides of the door during installation. But once installed, you never need to adjust it. Set-screw handles are faster initially but require ongoing maintenance.
Q4 – Does a through-bolt handle cost more?
A: Yes, typically 15–30% more than a basic set-screw handle. The extra cost comes from precision machining and longer bolts. Most users find the lifetime of no-wobble well worth the premium.
Q5 – My handle has a set screw but also a bolt – is that a through-bolt?
A: No. True through-bolt has no reliance on set screws. Some handles use a set screw as a secondary lock, but if the main attachment is a set screw, it will still loosen.
Q6 – Can a loose handle damage the door itself?
A: Yes. Over time, the wobbling handle enlarges the through-hole and spindle hole. Once damaged, even a new handle won’t fit snugly without door repair or a filler plate.
Q7 – Do commercial doors use a through-bolt?
A: Almost always. Commercial standards (ANSI/BHMA) often require a through-bolt for high-security or high-traffic applications. Residential handles have been slow to adopt it, but the trend is changing.
