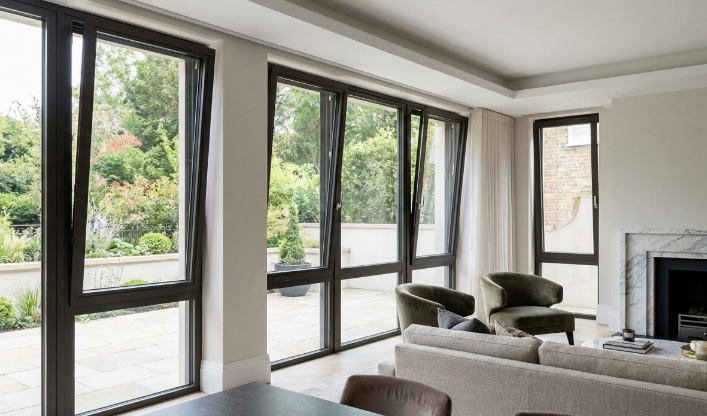

The modern architectural demand for ultra-thin aluminium frames is clear: maximise glass, minimise sightlines, and achieve a sleek, minimalist aesthetic. However, fitting reliable Tilt&Turn hardware into these narrow profiles is a significant engineering challenge.
Choosing between the standard European Groove (often adapted for 10-14mm narrow systems) and the heavier-duty 15/20mm standard is no longer just about fit—it is about balancing weight capacity, corrosion resistance, and installation efficiency.
This guide breaks down the technical landscape of 2025 to help you select the right hardware for flush, slim aluminium windows.
The Technical Divide: Narrow Frame vs. Standard Groove
Before selecting components, you must identify which profile system your production line supports. The industry is currently split between two distinct paths for aluminium.
The “European Groove” for Aluminium (10 – 14mm)
This is the standard Euro-Groove geometry, but optimised for aluminium. In the past, this was limited to PVC or heavy steel. However, leading suppliers like Roto and Siegenia now offer dedicated lines for aluminium profiles with groove widths of 10 mm to 14 mm.
- Best for: Fully concealed aesthetics where the hardware disappears behind the sash.
- Aesthetic: High. No visible hinge arms on the exterior.
- Weight Limit: Ranges from 80kg to 130kg, depending on the specific load transfer components used.
The 15/20mm Standard
This refers to a wider frame groove designed for heavy-duty or specific commercial profile systems. It is less common in “ultra-thin” residential designs but appears in large-format commercial doors.
- Best for: Very heavy sashes (exceeding 130kg) or specific European commercial extrusions.
- Aesthetic: Functional. Hardware is usually visible or partially concealed.
- Weight Limit: Can exceed 200kg with specific heavy-duty upgrades.
- Verdict: For true “ultra-thin” residential and mid-rise commercial projects, the 10-14mm European Groove (Concealed) is the dominant technology in 2025.
The Ultra-Thin Challenge: Flush vs. Protruding Sashes
When dealing with ultra-thin frames, the geometry of the corner joint changes. You have two specific scenarios:
- Scenario A: Protruding Sashes (Standard)
- The sash sits slightly over the frame. This is easier to manufacture because standard hinge systems have room to articulate.
- Hardware Requirement: Standard 10mm groove hinges.
- Risk: Low. Standard pivot points work well.
- The sash sits slightly over the frame. This is easier to manufacture because standard hinge systems have room to articulate.
- Scenario B: Flush Sashes (Design Trend)
- The sash sits perfectly inline with the frame, creating a flat surface. This is the “holy grail” for modern architecture, but a nightmare for standard hardware.
- The Problem: When you turn a flush sash, the corner often hits the frame because there is no offset.
- The Solution: You require special kinematics (like Roto’s “STS” or “Designo” lines) that feature an optimised turning curve to prevent collision.
- Key Feature: Look for hardware with a recessed or offset hinge axis.
- The sash sits perfectly inline with the frame, creating a flat surface. This is the “holy grail” for modern architecture, but a nightmare for standard hardware.
Critical Selection Criteria for 2025
Selecting the right hardware involves more than just measuring the groove. Here are the technical specifications that matter for ultra- thin frames.
- The “Concealed” vs. “Visible” Debate
- For ultra-thin frames, concealed hardware is the premium choice. It hides the hinge side entirely when the window is closed.
- Pros: Maximum glass area, clean lines, no exposed mechanics.
- Cons: Harder to adjust post-installation if the system is poorly designed.
- Innovation: New systems now use mounting wedges instead of slot nuts for installation, making concealed hardware much faster to install than older generations
- For ultra-thin frames, concealed hardware is the premium choice. It hides the hinge side entirely when the window is closed.
- .Corrosion Class (Class 5 is Mandatory)
- Aluminium frames are often used in coastal or high-humidity environments. Standard steel hardware will rust and seize.
- Requirement: Hardware must meet Corrosion Class 5 (DIN EN 1670).
- Material Check: Look for stainless steel punched components. Roto, for example, emphasises that their “AL Designo” line uses stainless steel to withstand extreme weather, even near the sea.
- Aluminium frames are often used in coastal or high-humidity environments. Standard steel hardware will rust and seize.
- Load Transfer (The Silent Killer of Thin Frames)
- Ultra-thin frames have less surface area to distribute the weight of heavy insulating glass. If the hardware doesn’t distribute the load correctly, the frame will sag.
- The Solution: High-end systems utilise specific load transfer components (e.g., Roto Glas-Tec GL-UKS) that stabilise the glass and transfer weight directly to the hardware, preventing deformation of the slim profile.
- Ultra-thin frames have less surface area to distribute the weight of heavy insulating glass. If the hardware doesn’t distribute the load correctly, the frame will sag.

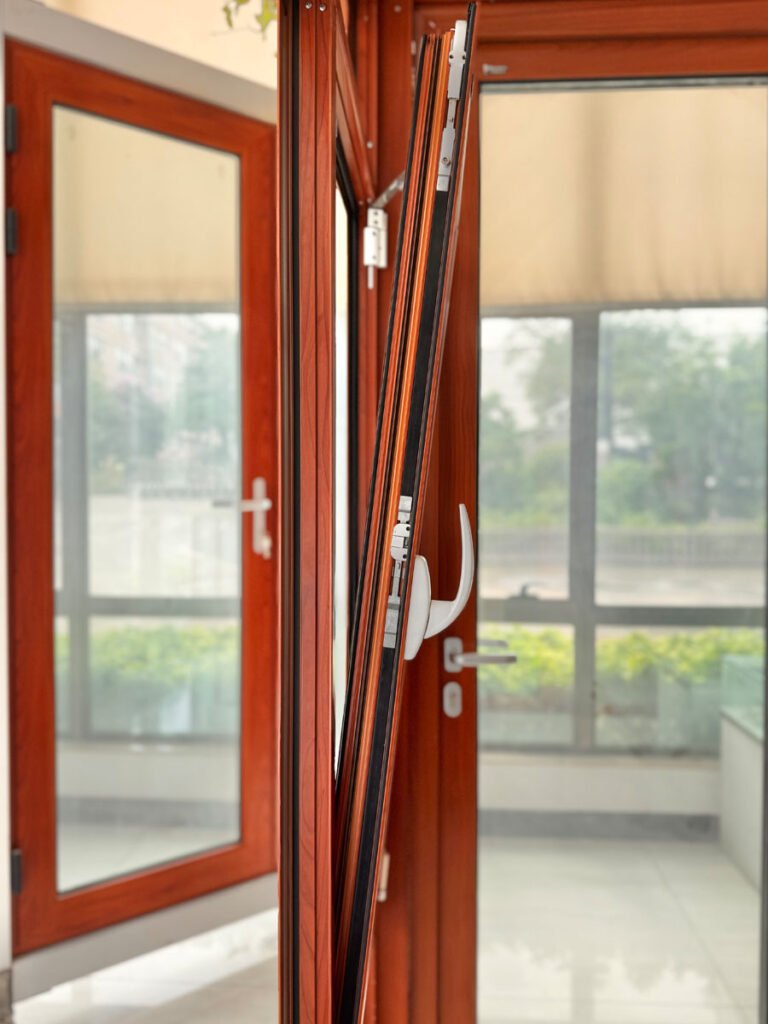

Installation & Operation: What to Look For
Ultra-thin frames leave no room for error. If the hardware is hard to install, the window will fail.
Speed of Installation (The Wedge System)
Traditional hardware requires clamping with slot nuts, which is fiddly in tight spaces.
- Modern Choice: Systems like the Roto AL Designo STS allow fitters to simply drive in mounting wedges to fix the sash stay. This is faster and guarantees a tight fit in narrow chambers.
180° Opening Capability
When windows are ultra-thin, they are often floor-to-ceiling. Cleaning the outside of a deep floor-to-ceiling window is difficult if the sash only turns 90°.
- New Tech: 2025 hardware lines now offer 180° opening hinges (e.g., Roto STS 180°). This allows the sash to swing completely flat against the interior wall or frame, making cleaning safe and easy without protruding into the room.
Noise Dampening
Metal-on-metal contact in thin frames creates a “cheap” rattling noise.
- Feature to look for: Damping elements or modified spring clips that eliminate play and prevent metallic contact. This is a hallmark of premium hardware and significantly improves the perceived quality of the window.

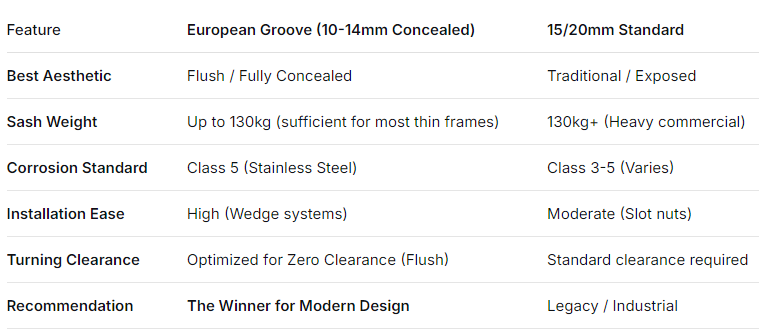

Summary Comparison Table
FAQ
Q1: Can I use standard PVC window hardware on my new ultra-thin aluminium frames?
No. PVC hardware is usually designed for thicker walls and different thermal expansion rates. Aluminium requires specific steel reinforcement and corrosion protection. Using PVC hardware on aluminium will likely void your warranty and lead to premature failure due to galvanic corrosion or bending.
Q2: What is the maximum sash weight for a flush aluminium window?
With modern concealed systems (like Siegenia ALU axxent or Roto AL Designo STS), you can reliably achieve 80kg to 130kg without visible hardware. For specific heavy-duty versions with load transfer plates, some systems push to 200kg, but this usually requires widening the frame profile slightly.
Q3: Why is “flush” hardware more expensive than standard hardware?
Because of the kinematics. To prevent the sash corner from hitting the frame when opened (a major risk with flush designs), the hinge side requires complex, precision-engineered turning curves and recessed pivot points. Standard hardware assumes a protruding sash that has room to swing.
Q4: My supplier mentioned “V.01 frame groove.” Is that compatible with European Groove hardware?
Yes. The V.01 frame groove is a specific standard for aluminium profile systems. High-end concealed hardware like the Roto AL Designo STS is explicitly designed and tested for profile systems with the V.01 frame groove. If your profile has this, you are on the right track for standard aluminium hardware compatibility.
Q5: Do I need special tools to install concealed hardware in thin frames?
Not necessarily. The latest trend (2024-2025) is tool-free or wedge-based installation on the hinge side. This eliminates the need for complex jigs or clamping tools. However, standard screwdrivers and alignment gauges are still required for the locking mechanism.
Conclusion: Making the Final Choice
Choosing the right Tilt&Turn hardware for ultra-thin aluminium frames comes down to profile width and aesthetic ambition.
- Choose the European Groove (10-14mm Concealed) if you are building modern, thermally broken aluminium windows with sash weights under 130kg. This is the industry standard for “ultra-thin.”
- Insist on “Flush” Kinematics if your sash aligns perfectly with the frame. Do not try to use standard hinges on a flush profile—you will get corner collisions.
- Prioritise Corrosion Class 5 and Damping Elements to ensure the window feels heavy, operates quietly, and lasts for decades, even in harsh weather.
For 99% of ultra-thin residential and commercial projects, the Concealed European Groove (10-14mm) hardware with an optimised turning curve is the correct technical and aesthetic choice. Reserve the 15/20mm standard only for specific heavy-duty industrial applications where aesthetics are secondary to raw weight capacity.
