For decades, homeowners have faced a frustrating choice when selecting windows: do you prioritize maximum airflow (casement) or safety and space-saving (sliding)? What if you didn’t have to choose?
Enter the Tilt and Turn System – a European-engineered marvel that is rapidly becoming the global gold standard for residential and commercial windows. This guide will explain how this dual-function system solves the most common window pain points, from poor ventilation to dangerous cleaning situations.

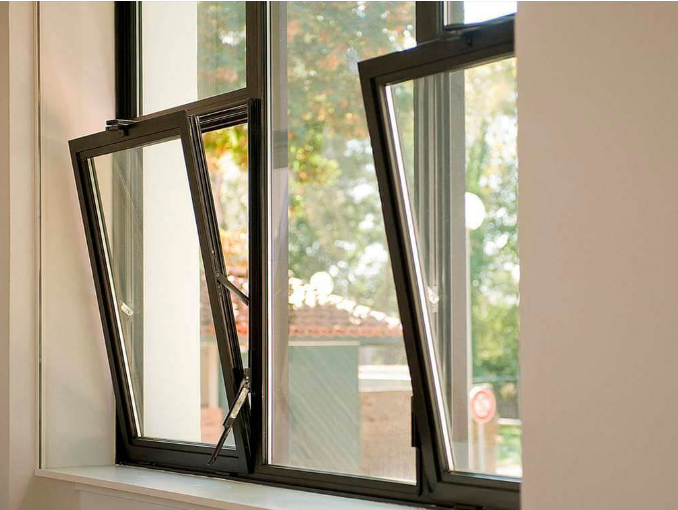

What Exactly is a Tilt and Turn System?
A Tilt and Turn window operates with a single handle that controls two distinct positions:
- Tilt (Position 1 – Handle Up): The top of the window swings inward from the bottom, creating a secure gap at the top. This allows for draft-free ventilation, rain protection, and security.
- Turn (Position 2 – Handle Horizontal): The entire sash swings inward like a door, hinged on the side. This provides full access for cleaning, maximum airflow, and an emergency egress route.
This mechanism relies on a multi-point locking system (typically 4-12 locking pins) embedded within the frame, ensuring an airtight seal when closed.
The 3 Major Pain Points of Traditional Windows (And How Tilt & Turn Solves Them)
- Pain Point #1: “My home feels stuffy, but I can’t leave the window open at night or when it rains.”
- The Problem: Casement windows blow shut in wind. Sliding windows leave a large, insecure gap. Double-hung windows offer poor rain protection.
- The Solution: Use the Tilt mode. Because the window opens from the bottom, rain hits the exterior glass and runs down, not in. The top gap allows constant air exchange without creating a security risk or letting in pests.
- Pain Point #2: “Cleaning the outside of my second-story windows is terrifying and expensive.”
- The Problem: To clean a standard casement or double-hung window, you must lean outside, use a ladder, or hire professionals.
- The Solution: Use the Turn mode. The entire window swings inward into your room. You can safely clean the exterior glass while standing on your floor. Zero ladders required.
- Pain Point #3: “My current windows leak air, making my energy bills high.”
- The Problem: Sliding and hung windows have poor compression seals. They rely on weatherstripping that degrades quickly.
- The Solution: Tilt & Turn windows use compression seals (like a refrigerator door). When you close the handle, the sash is pulled tightly against the frame, creating an airtight seal. This dramatically reduces drafts, noise pollution, and HVAC loss.
Key Technical Advantages of the System
- Micro-Ventilation Option: Many modern systems include a “micro-mode” (handle at 45 degrees) that leaves a 2-3mm gap for silent, continuous background ventilation.
- Child Safety: The tilt position is inherently child-safe. A child cannot fall out, yet the room receives fresh air. For full security, you can add a lockable handle.
- Emergency Egress (Fire Safety): In “Turn” mode, the entire opening is clear. Unlike fixed windows or small sliders, this meets strict egress codes for bedrooms.
- High Insulation Values (Uw): Due to multi-chambered frames and triple seals, these systems easily achieve Passive House standards (Uw < 0.80 W/m²K).

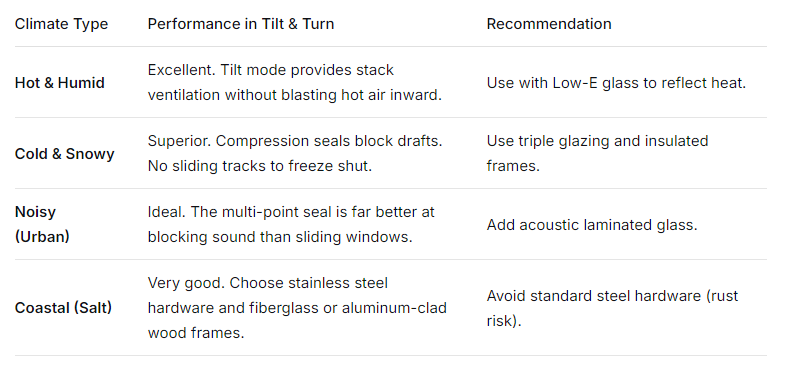

Is a Tilt and Turn System Right for Your Climate?
Potential Drawbacks (Honest Reality Check)
While superior, the system isn’t perfect for every situation:
- Interior Space Required: When you open the window in “Turn” mode, the sash swings into the room. You cannot place furniture (sofas, desks) directly in front of the window’s swing arc.
- Cost: High-quality German or Austrian hardware (Roto, Siegenia, Maco) costs more than standard slider hardware.
- Complexity for Beginners: First-time users often force the handle from Tilt to Open without closing it first, which can bend the mechanism. (Solution: Always close the window fully before switching modes).
Installation & Maintenance Best Practices
- Installation: You cannot install a Tilt & Turn window like a slider. The frame must be perfectly square and level. Hire a certified installer who has worked with European-style windows. Improper installation causes the sash to rub or leak.
- Maintenance (Once per year):
- Open the window fully (Turn mode).
- Lubricate the multi-point locking pins and hinges with a PTFE-based spray (not WD-40, which attracts dust).
- Adjust compression hinges (using a 4mm hex key) if you feel a draft.
FAQ
Q1: Can I use Tilt and Turn windows for a sliding patio door?
A: No. For large openings, look for “Lift & Slide” or “Tilt & Slide” doors. Tilt and Turn is designed for window sashes (typically up to ~130 lbs per sash). For very large openings, use a Tilt & Turn window next to a fixed panel.
Q2: What happens if I try to turn the handle from Tilt to Open without closing first?
A: You will likely damage the locking mechanism. The handle has a safety interlock. If you force it, you can bend the steel pins. Always return the handle to the closed (down) position before changing modes.
Q3: Are Tilt and Turn windows more expensive than double-hung?
A: Initially, yes (20-30% premium). However, they last longer, require no exterior cleaning services, and lower energy bills. Over 20 years, they are cheaper to own.
Q4: Do I need special screens for bugs?
A: Yes. Standard screens block the handle. You need a custom hinged or sliding screen that mounts on the exterior or a specialized interior pleated screen. Many European owners forgo screens because the tilt position naturally deters insects.
Q5: Can I retrofit Tilt and Turn into my existing wood frame?
A: Possibly, but rarely recommended. The wall opening depth (jamb depth) required for European Tilt & Turn (68mm to 84mm) is deeper than US standard 2×4 walls. It is better to replace the entire frame.
Q6: Which is better: uPVC, Aluminum, or Wood?
A:
uPVC: Best value, lowest maintenance, excellent insulation. (Most popular).
Aluminum: Sleekest look, strongest, but requires a “thermal break” to prevent condensation.
Wood (Alu-clad): Best aesthetics and insulation, but requires painting every 5-7 years.
Q7: Is the “Tilt” position secure against burglars?
A: Yes. In tilt mode, the multi-point locks are still engaged at the bottom and sides. A burglar cannot lift the sash out because the hinges are locked. It is significantly more secure than a sliding window left open 2 inches.
Final Verdict
If you are building a new home or replacing old windows, the Tilt and Turn system is arguably the most functional window type on the market. It solves the “cleanability” nightmare, the “night ventilation” safety risk, and the “air tightness” energy crisis in one elegant mechanism. The only real sacrifice is interior floor space near the window. For most homeowners, that is a small price to pay for safety and comfort.
