Stainless Steel 304 vs. 316 Which Window Hinge Material is Right for Your Coastal Project?

Picture this scenario: you have invested a fortune to build your dream home situated right on the coastline—a place where opening the window reveals a breathtaking vista and allows the sea breeze to caress your face. Yet, less than a year later, you discover that the window sashes have begun to sag and are difficult to open or close. Upon closer inspection, you find the hinges riddled with visible rust spots—a phenomenon commonly referred to as “pitting.” This not only mars the scenic beauty but also poses a serious safety hazard.

In coastal environments, the corrosion of window hinges is not a question of if it will happen, but rather when. The sea breeze carries a high concentration of chloride ions (salt), which can penetrate the protective surface layers of most metals, triggering irreversible corrosion. For architects, contractors, and homeowners alike, selecting the right material for window hinges becomes a strategic battle against the forces of nature.

This article will provide an in-depth comparison of the two most prevalent materials used for window hinges—304 stainless steel and 316 stainless steel. We will analyze these materials from various perspectives—including chemical composition, corrosion resistance mechanisms, cost-effectiveness, and real-world case studies—to help you make decisions that are both safe and economically sound for your coastal construction projects.

I. The Core of the Problem: The “Corrosion Code” of Coastal Environments

Before delving into a detailed comparison of materials, we must first understand the adversary. Why do coastal environments serve as a “graveyard” for metals?

Chloride ions (Cl⁻) are the primary culprits. These minuscule, charged particles can easily penetrate the protective chromium oxide layer—also known as the “passive film”—on the surface of stainless steel. Once this protective layer is breached, the underlying base metal begins to oxidize and rust. This process is known as “pitting corrosion.”

Furthermore, window sash hinges face the additional risk of crevice corrosion. At the junction where the hinge pin connects to the hinge leaf, moisture laden with salt tends to accumulate over time without evaporating. This creates an oxygen-depleted microenvironment, causing the rate of corrosion to accelerate drastically.

If the wrong materials are selected, the consequences extend far beyond mere aesthetics:

1. Functional Failure: The volume of corrosion products (rust) expands, causing the hinge to seize up or generate abnormal noises, thereby preventing the window sash from opening or closing properly.
2. Structural Risk: Corrosion reduces the effective load-bearing cross-section of the hinge, compromising its structural integrity. This can lead to the window sash detaching and falling—a scenario that poses a serious safety hazard.
3. Maintenance Costs: In coastal regions, replacing a failed hinge may necessitate high-altitude operations and potentially damage the surrounding wall finishes; consequently, the cost of such maintenance can be dozens of times higher than the cost of the raw materials themselves.

II. 304 vs. 316 Stainless Steel: Deconstructing the “DNA” of Two Materials

Although both belong to the austenitic stainless steel family and share a gleaming, silvery appearance, their internal “DNA” dictates two vastly different destinies.

1. The Secret of Chemical Composition: Molybdenum Is the Key
   • The most fundamental difference between 304 and 316 lies not in their chromium or nickel content, but rather in the presence—or absence—of molybdenum (Mo).
   •

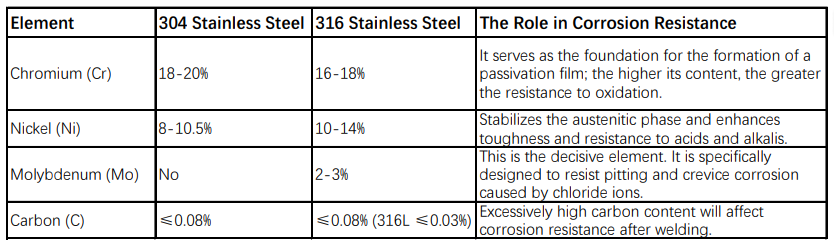

   • As shown in the table, the 2–3% molybdenum added to 316 stainless steel acts like a “stab-proof vest” for the metal, specifically designed to resist the penetration of chloride ions.
2. Quantitative Comparison of Corrosion Resistance
   • Under laboratory conditions, the difference between the two can be quantitatively assessed through salt spray testing.
     • 304 Stainless Steel: In standard salt spray tests, it typically withstands exposure for approximately 72 to 100 hours before red rust begins to appear.
     • 316 Stainless Steel: Thanks to the presence of molybdenum, its resistance to salt spray can extend to 240–500 hours—or even longer. This implies that in equally harsh coastal environments, the service life of 316 is at least 3 to 5 times that of 304.
3. Mechanical Properties and Applicable Scenarios
   • Although there is a significant disparity in corrosion resistance, in terms of pure mechanical strength (such as tensile and yield strengths), the two are quite comparable. Consequently, for inland or arid environments, 304 is perfectly adequate; however, in coastal regions, the “loss of effective cross-sectional area” caused by corrosion will lead to a rapid deterioration of 304’s mechanical properties.

III. Coastal Applications: The “One-Year Itch” vs. the “Ten-Year Commitment” for Two Hinge Types

• 304 Stainless Steel Hinges: A Budget-Friendly Choice, But Not Without Risk
  • In areas situated within 500 meters of the coastline, the use of 304-grade stainless steel window hinges typically results in the onset of minor pitting corrosion within one to two years. Once these rust spots form, they evolve into deeper corrosion pits, thereby accelerating the failure of the hinge.
    • Case Study: During the initial construction phase of a coastal resort, the developers opted to standardise on 304 stainless steel hardware to keep costs in check. Just 18 months later, the property management team was confronted with a flood of reports regarding stiff window operation and hinge corrosion. The maintenance crew discovered that the leaves of many hinges had thinned significantly, having lost their original structural support capacity.
• 316 Stainless Steel Hinges: The “Guardian” of Marine Engineering
  • 316 stainless steel is frequently referred to as “marine-grade” or “naval-grade” stainless steel. This is not merely a marketing ploy, but a designation grounded in its exceptional performance within chloride-rich environments.
  • Real-World Performance:
    • High Resistance to Pitting: In salt-spray environments, the surface of 316 stainless steel maintains its passive state for extended periods; even under conditions of direct exposure to sea breezes, it can remain free of significant corrosion for decades.
    • Compatibility with Acidic Timbers: Certain premium hardwoods—such as oak and mahogany—naturally contain acidic compounds. 316 stainless steel exhibits superior tolerance to acidic substances compared to 304, thereby preventing chemical corrosion triggered by the acidity of the timber itself.
    • Durability Testing: High-quality 316 stainless steel hinges (such as those in the UK’s “Coastal Blue” series) have successfully passed opening-cycle tests ranging from 25,000 to 100,000 cycles. Furthermore, they are capable of supporting window sash weights ranging from 40 kg to 160 kg, demonstrating that their excellence lies not only in their material composition but also in a structural design robust enough to withstand long-term operational challenges.
  • Case Study: In many luxury coastal residences across Hong Kong and Singapore, developers specifically mandate the use of 316-grade stainless steel hardware. Even after 15 to 20 years of service, while these hinges may have lost some of their original luster due to weathering, their structural integrity remains uncompromised; to date, there have been no instances requiring hinge replacement due to corrosion-related failure.

IV. Cost-Benefit Analysis: Taking a Long-Term View

This constitutes the most critical stage in project decision-making. We must abandon the mindset of “focusing solely on unit price” and shift our focus to “total lifecycle costs.”

1. Initial Procurement Costs
   • 304 Hinges: Price Benchmark (100%).
   • 316 Hinges: Typically 15% to 25% more expensive than 304 hinges.
2. Implicit Costs and Risk Costs
   • Maintenance Costs: In coastal regions, the labor cost involved in replacing a single 304 hinge—including scaffolding erection, paint touch-ups, and labor fees—often exceeds the intrinsic value of the hinge itself by several dozen times.
   • Safety Risks: The potential legal liabilities and damage to brand reputation resulting from a falling window sash are, furthermore, incalculable.
3. Total Lifecycle Comparison
   • Assuming a building lifespan of 30 years for a coastal project:
     • Using 304 Hinges: A first large-scale replacement may be required between years 5 and 8, followed by a second replacement around year. When factoring in the labor costs for these two replacements, along with minor repairs and touch-ups conducted in the interim, the total cost amounts to 5 to 10 times the initial procurement cost.
     • Using 316 Hinges: A one-time installation designed to last the entire lifespan of the building. Aside from routine cleaning and lubrication, maintenance requirements are virtually zero.
   • Conclusion: For locations situated within 5 kilometers of the coastline, or in industrial zones characterized by high salt-spray and high humidity levels, the long-term cost-effectiveness of 316 stainless steel hinges is vastly superior to that of 304 hinges.

V. Buying Guide: How to Distinguish Authenticity and Key Parameters

As a project procurement manager, simply specifying “316 stainless steel” is not enough; you must also exercise due diligence in the following areas to ensure you are purchasing genuine, high-quality materials.

1. The “Three Yardsticks” of Inspection Reports
   • Chemical Composition Analysis Report: Require the supplier to provide a Mill Certificate to verify that the Molybdenum (Mo) content falls within the 2.0–3.0% range.
   • Salt Spray Test Report: Check the duration of the test. For hinges intended for coastal projects, the Neutral Salt Spray (NSS) test duration should be no less than 240 hours and must be conducted in accordance with the ISO 9227 standard.
   • Durability Testing: Refer to standards such as BS EN 1935, which require the hinge to withstand over 20,000 opening cycles under load testing without sustaining damage.
2. Observing Craftsmanship Details
   • Surface Finish: High-quality 316 stainless steel hinges often feature PVD (Physical Vapor Deposition) or electropolishing treatments. PVD not only offers a wide variety of colors—such as black or antique bronze—but also enhances surface hardness; electropolishing, conversely, facilitates the formation of a denser passivation layer on the surface.
   • Structural Design: For heavy-duty window sashes, check whether the hinge incorporates self-lubricating washers (such as phosphor bronze washers) at friction points. This prevents “metal galling” (adhesive wear) and eliminates the need for lubricating oils, which could otherwise drip and stain the window frame under high coastal temperatures.
3. Avoid Contact Between Dissimilar Metals
   • This is a critical detail that is often overlooked: What happens if the hinge itself is made of 316 stainless steel, but the installation screws are made of 304 stainless steel—or worse, galvanized steel? — Galvanic corrosion occurs.
   • In the presence of a seawater electrolyte (saltwater), the less reactive metal (the cathode—in this case, the 316 hinge) will accelerate the corrosion of the more reactive metal (the anode—in this case, the galvanized screw). The Solution: Ensure that all accompanying screws and washers are also made of 316 stainless steel; ideally, use matching hardware components from the same manufacturer.

VI. Special Scenario Considerations

While Grade 316 is typically the preferred choice for coastal projects, certain scenarios warrant special consideration:

• Highly Corrosive Environments
  • If your building faces the open sea directly, is situated within the “splash zone” (an area where waves make direct contact), or is located in an area with extremely poor air quality (e.g., due to acid rain or severe industrial pollution), standard Grade 316 may face challenges.
  • Upgrade Options: Consider Grade 316L stainless steel (the low-carbon variant), which offers superior resistance to intergranular corrosion following welding. Alternatively, opt for the higher-grade 2205 duplex stainless steel, which boasts greater structural strength and a higher pitting resistance equivalent number (PREN).
• Historically Protected Buildings or Specific Aesthetic Requirements
  • In some instances, the modern aesthetic of stainless steel may not align with the vintage requirements of certain architectural designs.
  • Alternative Options: A marine-grade stainless steel substrate with an external cladding/wrap, or the direct use of solid bronze (tin bronze) hinges. In marine environments, bronze naturally forms a stable protective patina and is completely impervious to rust—making it a classic and enduring choice for historic buildings.

VII. Conclusion: Choosing the Right “Joints” for Your Building

Subjected to the ceaseless erosion of sea breezes, window hinges are not merely ordinary hardware; they are structural components critical to a building’s safety and longevity. Based on the in-depth comparison above, we can draw a clear conclusion:

1. If you are located in an inland region (more than 50 kilometers from the coastline), your building is low-rise, and there is no direct threat from salt spray, then 304 stainless steel hinges—compliant with national standards—will fully meet your needs and represent a cost-effective choice.
2. If you are planning or constructing a coastal project—whether it be a luxury villa, a sea-view apartment, or an island guesthouse—you must prioritize 316 marine-grade stainless steel hinges. That additional 20% in budget represents a “maintenance-free” insurance policy purchased for the next 30 years—a steadfast commitment to both structural safety and quality of life.

Remember: as you gaze upon the magnificent beauty of the ocean, do not forget that what safeguards this vista are the hinges—hidden behind the window sashes—silently enduring the relentless test of corrosion. Choose 316, and let your building remain as timeless and pristine as the sea breeze itself.

FAQ

To help you resolve practical issues more quickly, we have compiled the following list of frequently asked questions:

Q: I live by the seaside; how long can I expect 304 stainless steel hinges to last?
Generally speaking, if located within 500 meters of the coast and exposed directly to sea breezes without any shielding, 304 stainless steel hinges may develop visible rust spots within 1–2 years, and their functional performance may be compromised within 3–5 years. The exact timeframe depends on local wind speeds, humidity levels, and the quality of the passivation treatment applied to the hinge’s surface.

Q: What should I do if my 316 stainless steel hinges start to rust?
First, verify whether it is genuine rust. Sometimes, it may simply be “contamination rust” caused by iron-containing dust particles settling on the surface. You can try wiping it off first using a melamine sponge (magic eraser) or a standard pencil eraser.
If it is genuine pitting corrosion:

1. Cleaning: Use a neutral detergent to wash away any surface salt deposits.
2. Passivation Treatment: Apply a stainless steel passivation paste or a citric acid solution to restore the protective oxide film on the surface.
3. Maintenance: Periodically apply a small amount of lubricant (such as WD-40 Specialist Stainless Steel Cleaner & Protectant) to create a barrier against the air.

Q: I purchased 316 stainless steel hinges, but a magnet sticks to them; does this mean they are counterfeit?
No, not necessarily. Although 304 and 316 are classified as austenitic stainless steels—which are typically weakly magnetic or non-magnetic under ideal conditions—the material’s microstructure undergoes a phase transformation during cold working processes (such as stamping or bending). This process generates martensite, resulting in weak magnetic properties. The greater the degree of deformation in a specific area during processing, the stronger the magnetic attraction will be. This is a normal phenomenon and does not indicate that the material is counterfeit. Genuine counterfeit products typically feature soft, flimsy metal and a rough, poor-quality surface plating finish.

Q: Aside from coastal areas, in what other situations is it essential to use 316 stainless steel hinges?

1. Indoor Swimming Pools: The air contains corrosive chlorine vapors.
2. Hot Spring & Bathing Centers: The environment involves a combination of sulfur compounds and high-temperature humidity.
3. Breweries or Pickling Facilities: Environments characterized by high acidity or high salt concentrations.
4. Applications involving acidic woods: Such as untreated oak, cedar, and similar timber species.

Q: Are there any specific requirements regarding the tools used to install 316 stainless steel hinges?
It is essential to use high-quality high-speed steel or carbide drill bits. 316 stainless steel is “stickier” than 304 and work-hardens at a faster rate. If the drilling or tapping speed is too slow, or the applied pressure is insufficient, the material’s surface will harden rapidly; this makes subsequent machining even more difficult and can even result in burning out the drill bit. It is recommended to use a coolant to assist in the machining process.

Q: Why are some 316 stainless steel hinges cheaper than their 304 counterparts?
Be wary of “substandard goods masquerading as high-quality products” in the market. The following situations may be at play:

1. Incorrect Material: 201 stainless steel is being passed off as 316, or the hinge merely features a thin surface plating of 316.
2. Substandard Workmanship: The hinge leaves (blades) lack sufficient thickness, or the hinge pin is made of a material of a lower grade.
3. Lack of After-Sales Certification: There are no third-party inspection reports or warranty guarantees available. When making a purchase, always insist on obtaining material certification documents.
